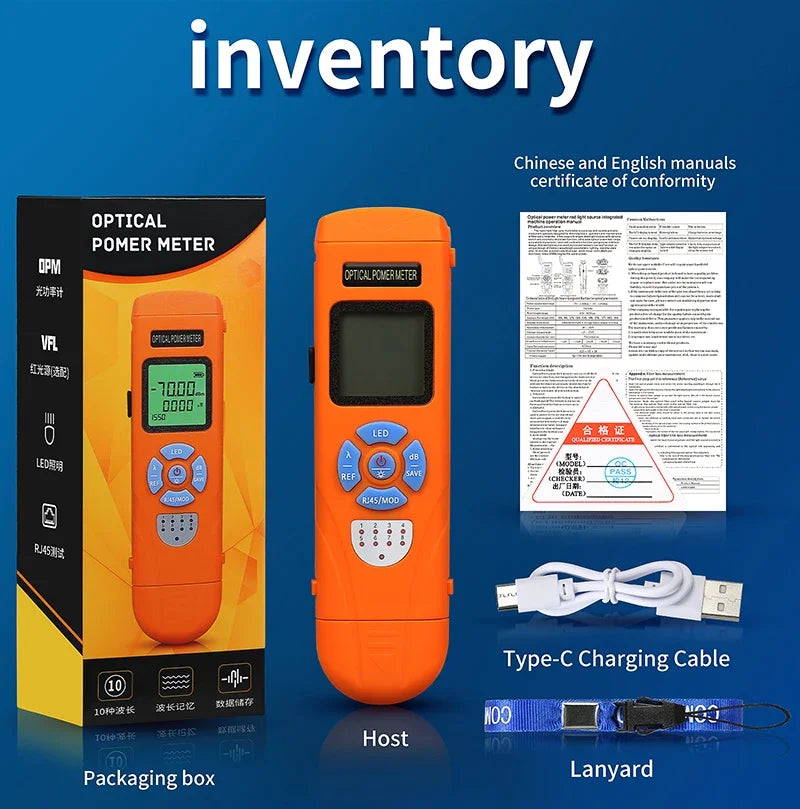

High-Precision FTTH Fiber Optic Power Meter — Digital Optical Signal Tester

Measure Optical Power. Diagnose Fiber Networks.

A fiber optic power meter is the essential diagnostic tool for anyone installing, maintaining, or troubleshooting fiber-to-the-home (FTTH) networks. This high-precision digital meter measures optical signal strength across the standard telecom wavelengths, giving technicians the data they need to verify signal levels, identify loss, and confirm that a fiber installation is performing within spec.

Features

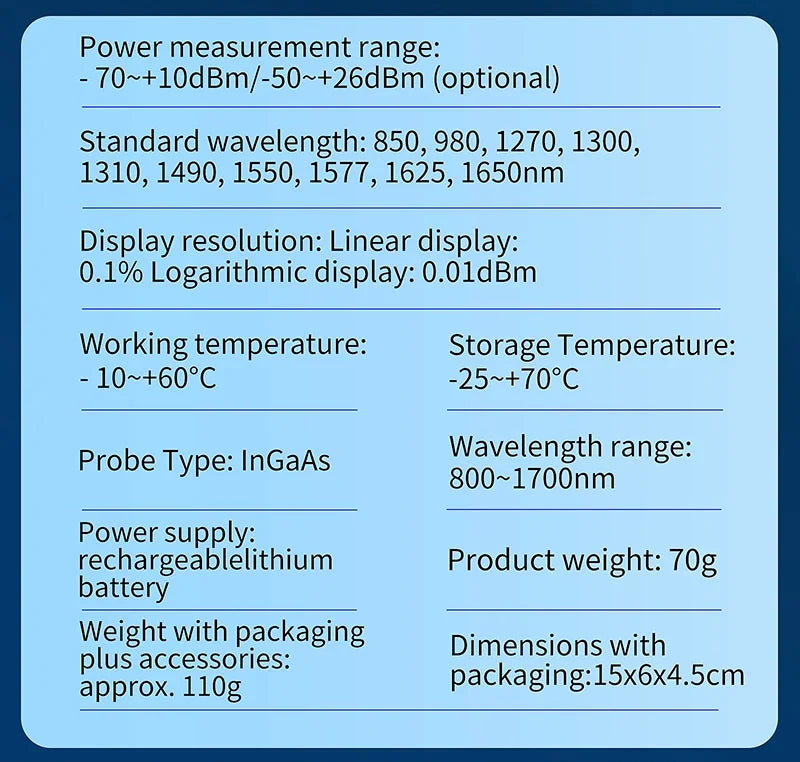

• High-precision measurement — accurate optical power readings across the standard FTTH wavelength range (typically 800–1700nm)

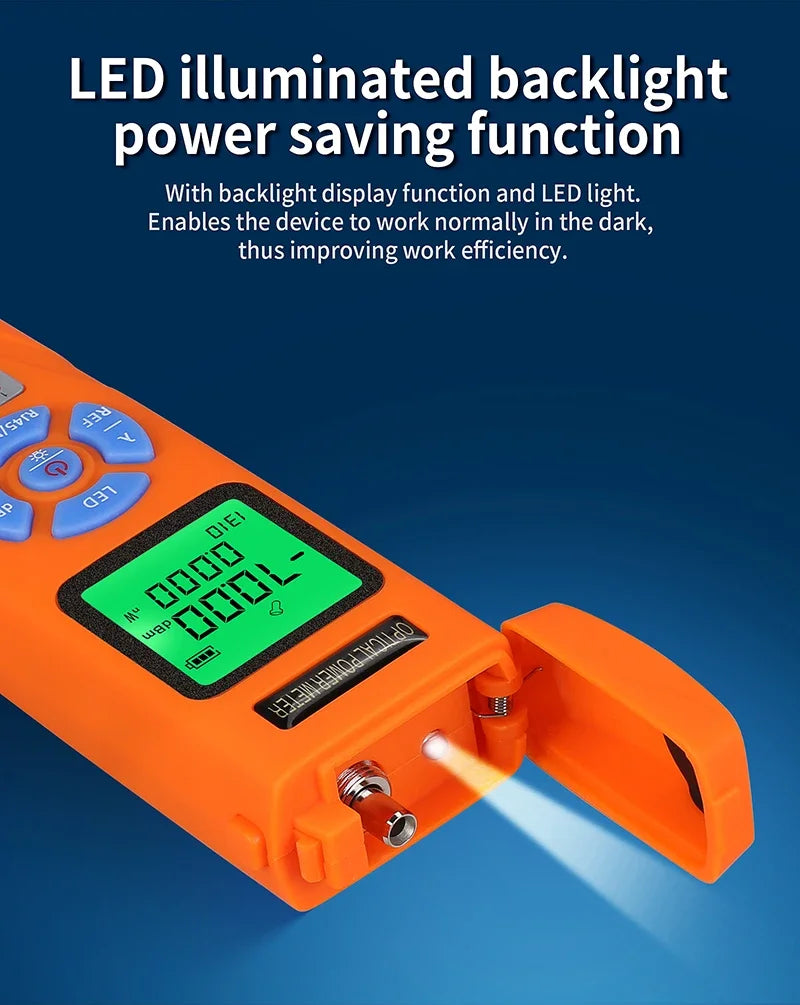

• Digital LCD display — clear numerical readout of optical power in dBm and μW for easy interpretation

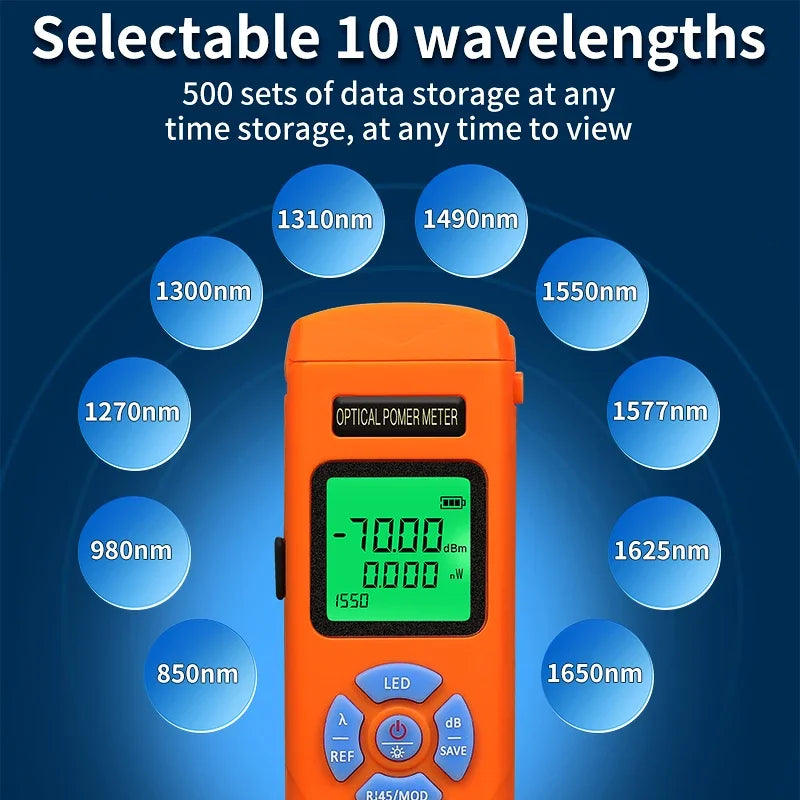

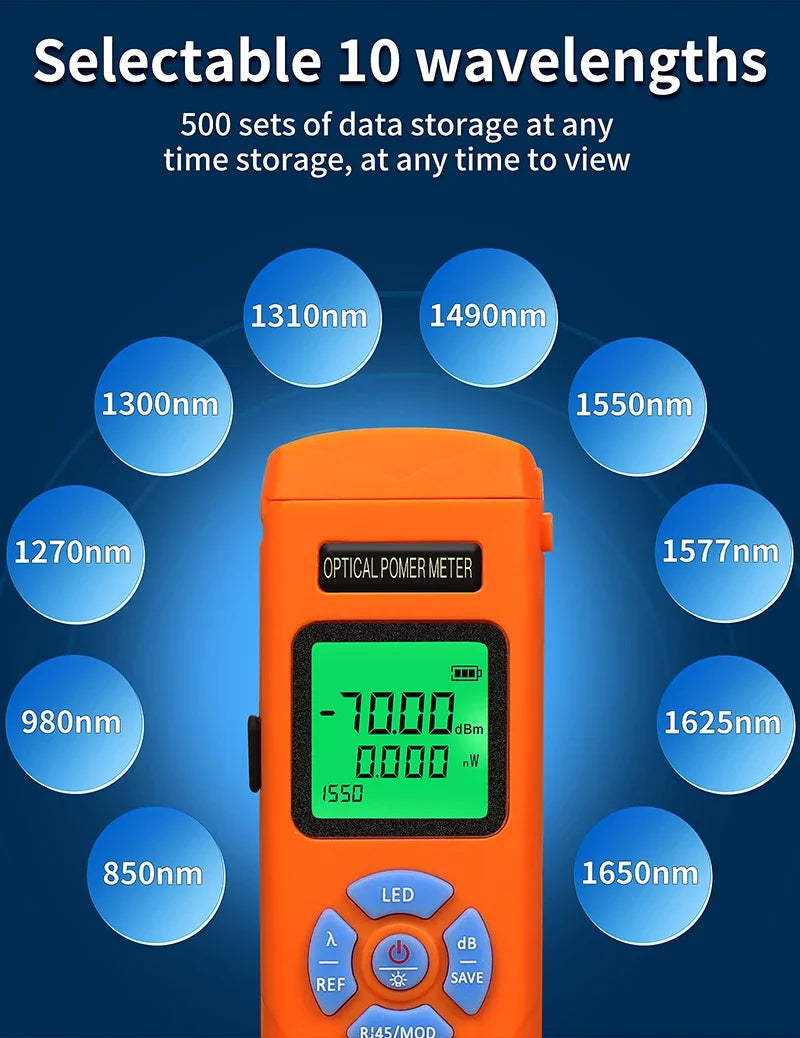

• Multiple wavelength support — measures at standard telecom wavelengths including 850nm, 1300nm, 1310nm, 1490nm, 1550nm, and 1625nm

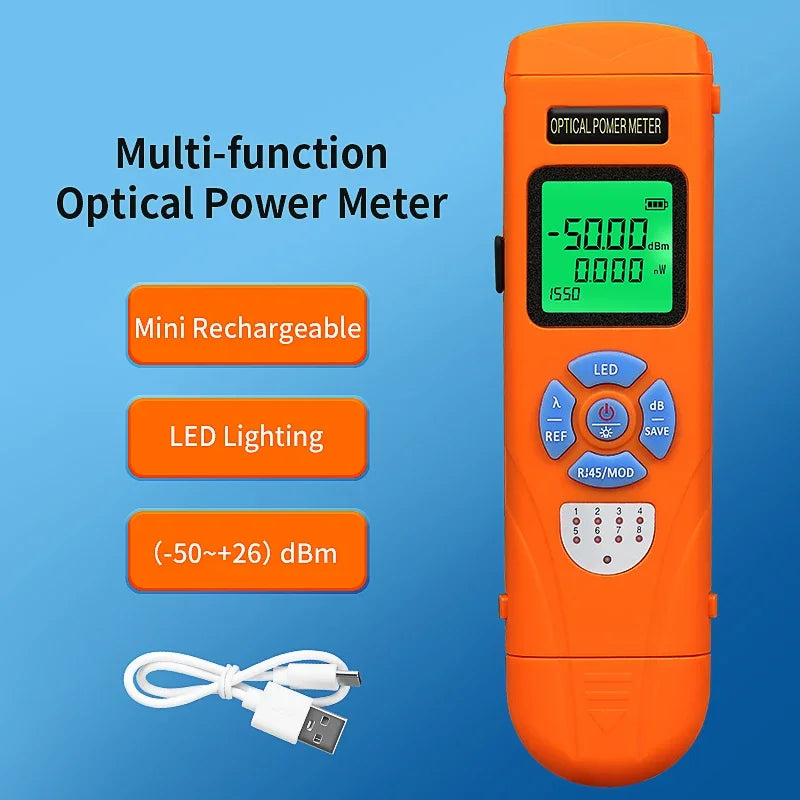

• Wide measurement range — measures from high signal levels down to very low power for detecting signal loss and attenuation
• Universal FC/SC/ST adapter — compatible with standard fiber optic connectors used in FTTH and telecom installations

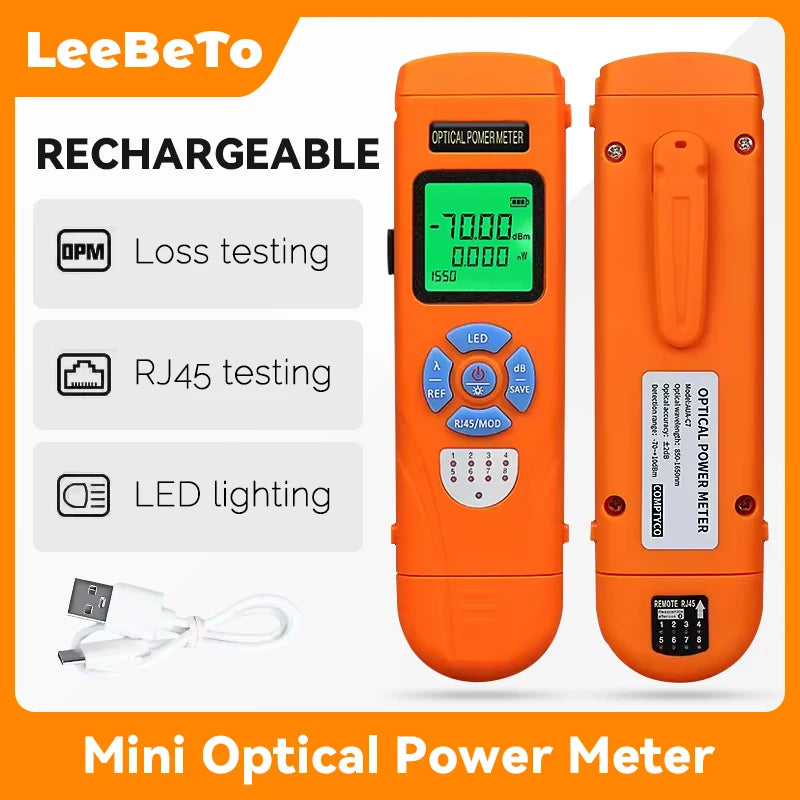

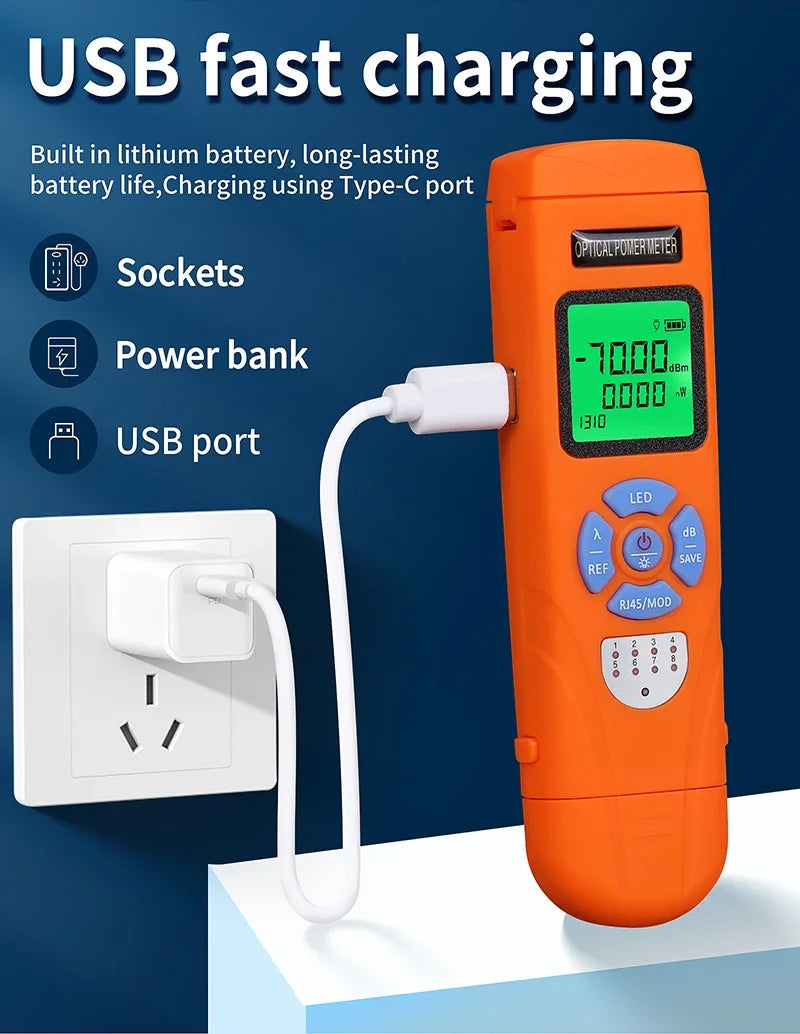

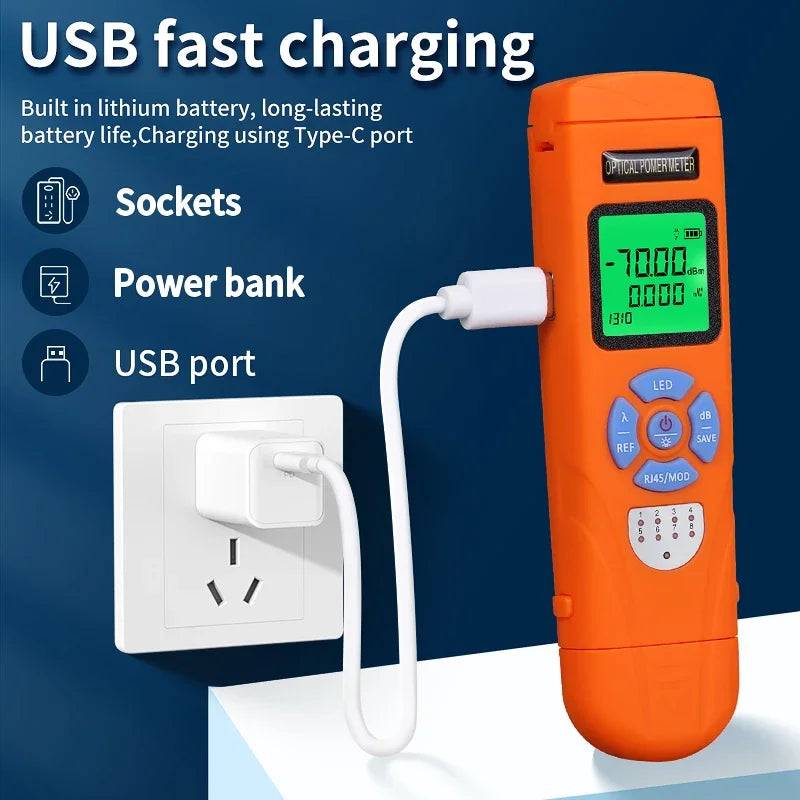

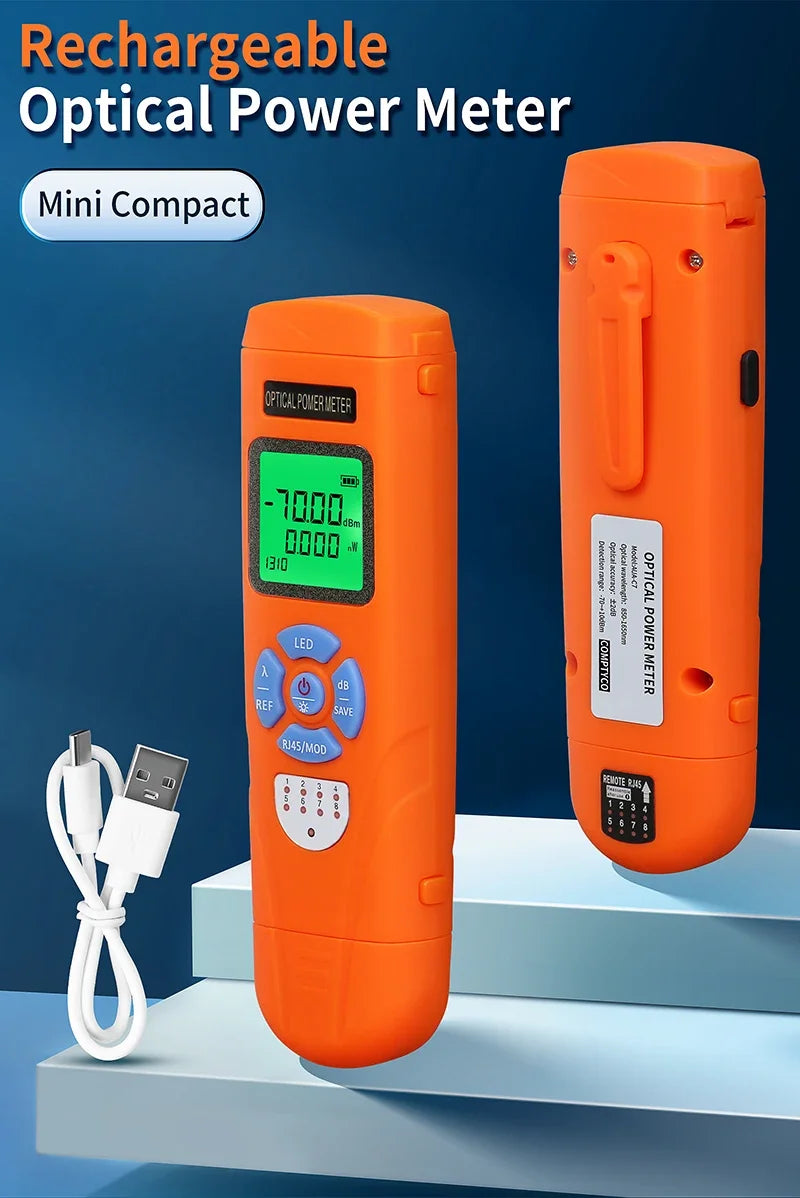

• Rechargeable battery — built-in rechargeable battery for field use without access to power outlets

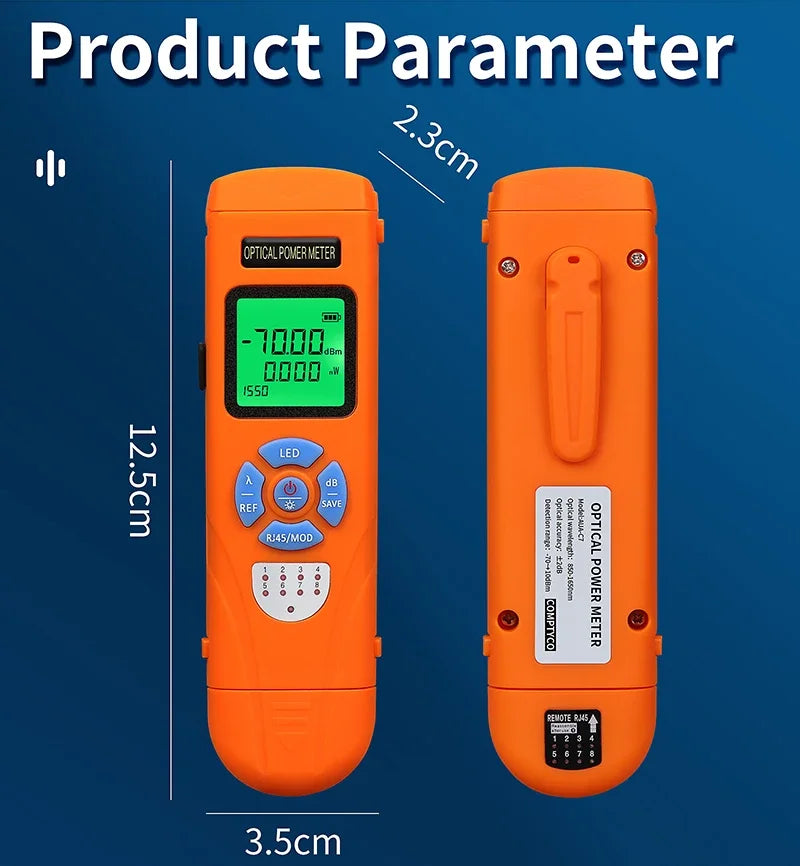

• Compact & portable — handheld form factor for field technician use
• Auto power-off — conserves battery during extended field work

Who It’s For

• FTTH installation and maintenance technicians
• Network engineers verifying fiber link budgets and signal levels
• ISP field technicians troubleshooting customer connection issues
• Data center technicians managing fiber infrastructure

How to Use

1. Charge the meter fully before field use.
2. Clean the fiber connector end-face before connecting to the meter — contamination is the most common cause of inaccurate readings.
3. Connect the fiber under test to the meter’s input port using the appropriate adapter (FC, SC, or ST).
4. Select the measurement wavelength to match the light source being tested.
5. Read the optical power level from the LCD display in dBm.
6. Compare the reading against the expected power level for the link to identify loss or signal issues.

Frequently Asked Questions

What’s the difference between dBm and μW readings?
dBm (decibels relative to 1 milliwatt) is the standard unit for optical power in telecom; it’s a logarithmic scale that makes it easy to calculate link loss by subtraction. μW (microwatts) is a linear unit. Most fiber technicians work in dBm — the meter displays both for flexibility.

Do I need a separate light source?
Yes — a power meter measures the optical power of a signal; it requires an active light source (laser or LED) at the other end of the fiber. For testing passive fiber runs, use a fiber optic light source or optical loss test set (OLTS) in conjunction with this meter.

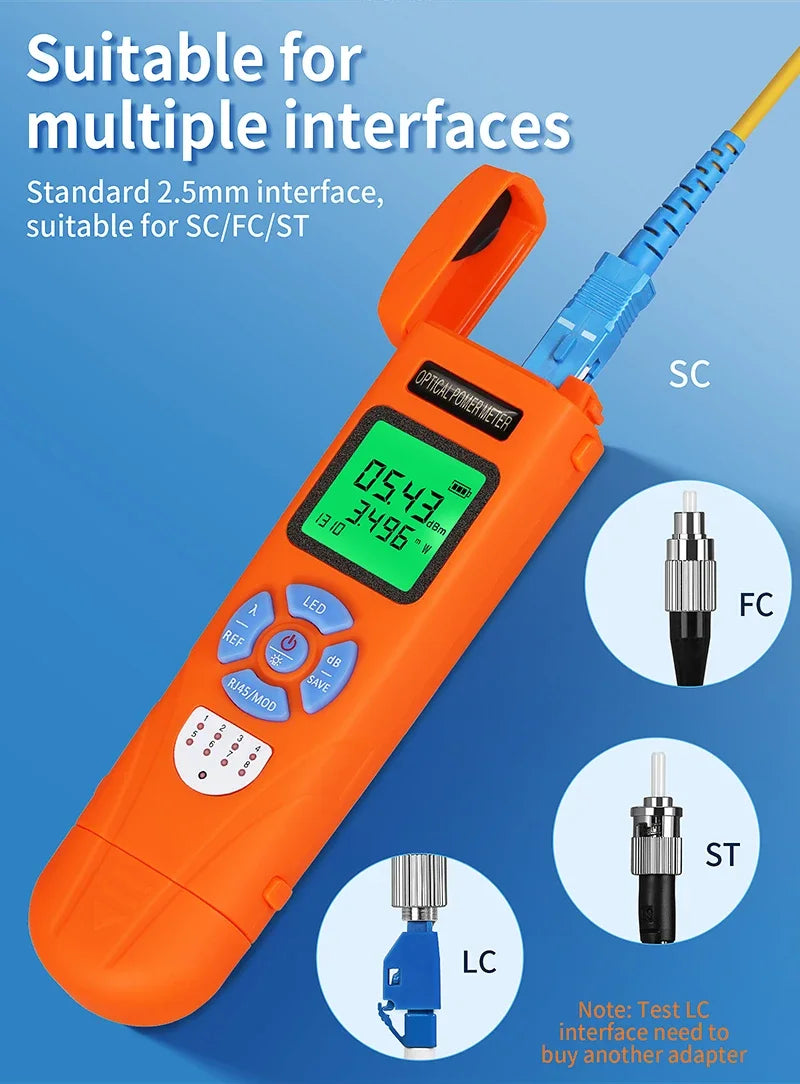

What connector types does it support?
The meter includes adapters for FC, SC, and ST connectors — the most common connector types in FTTH and telecom installations. LC connectors require an LC-to-SC adapter (not always included — check variant details).
