3 Ton Backhoe Loader – CE/EPA/Euro V Certified Front Loader & Digger for Farm & Construction

Front Load. Rear Dig. One Machine. Zero Compromises.

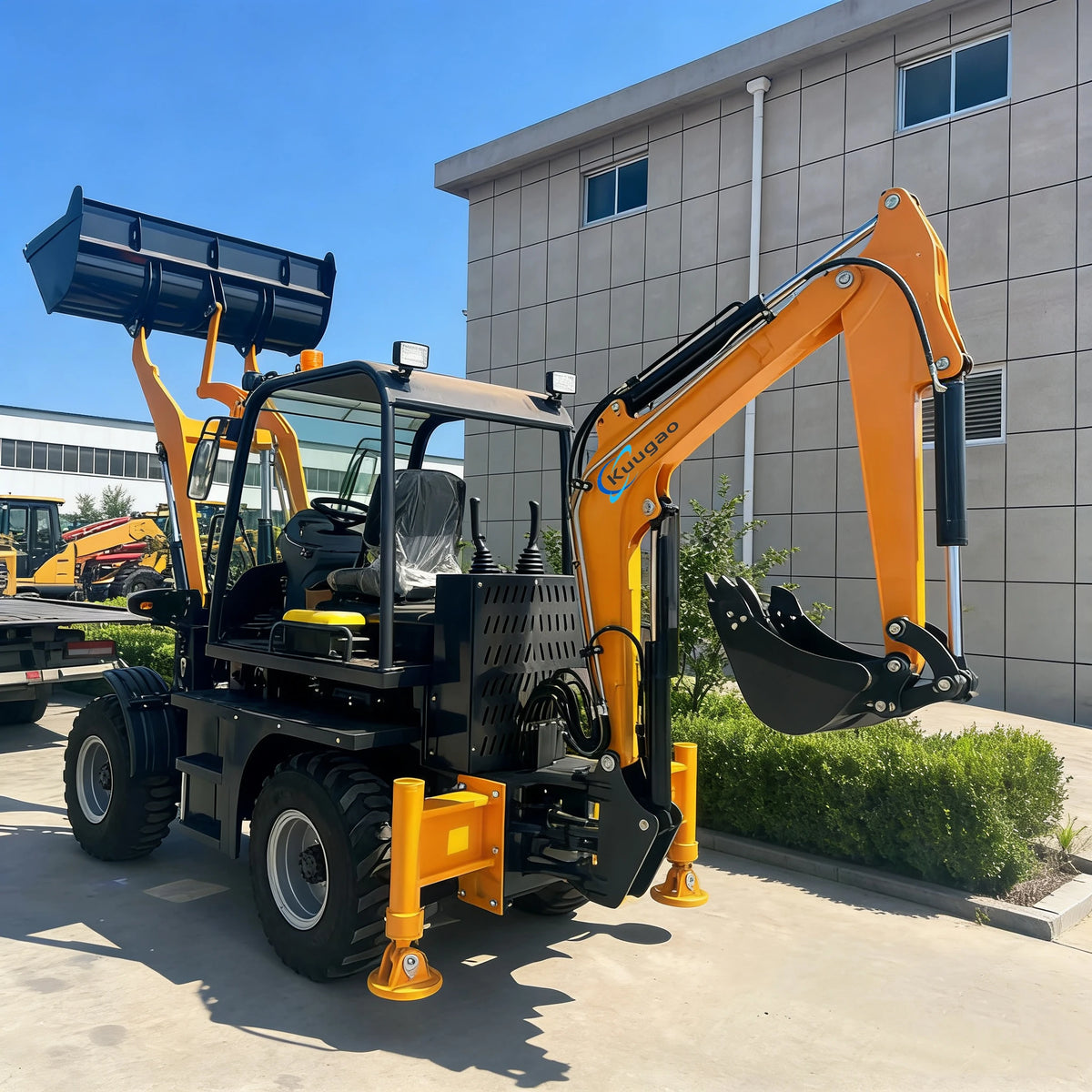

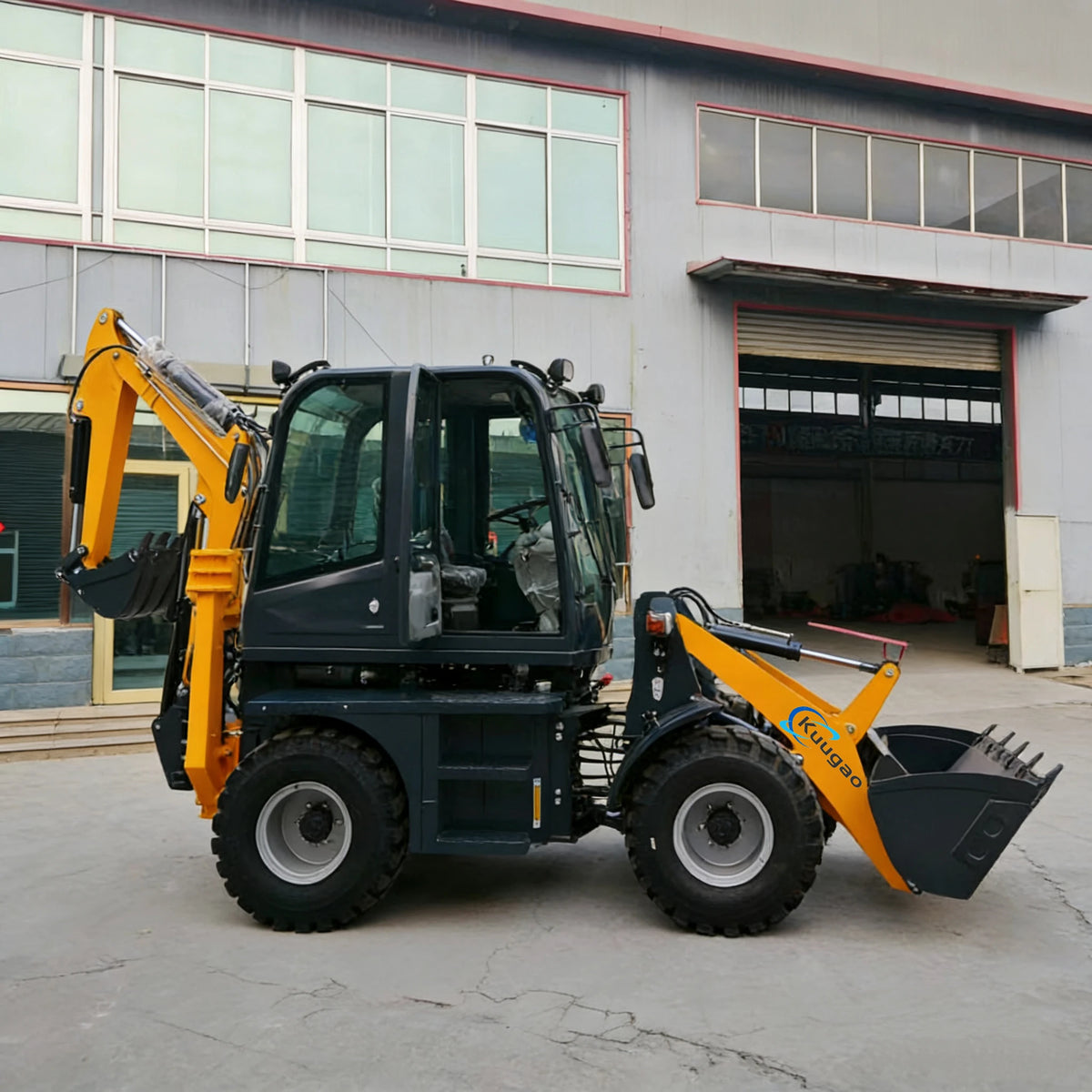

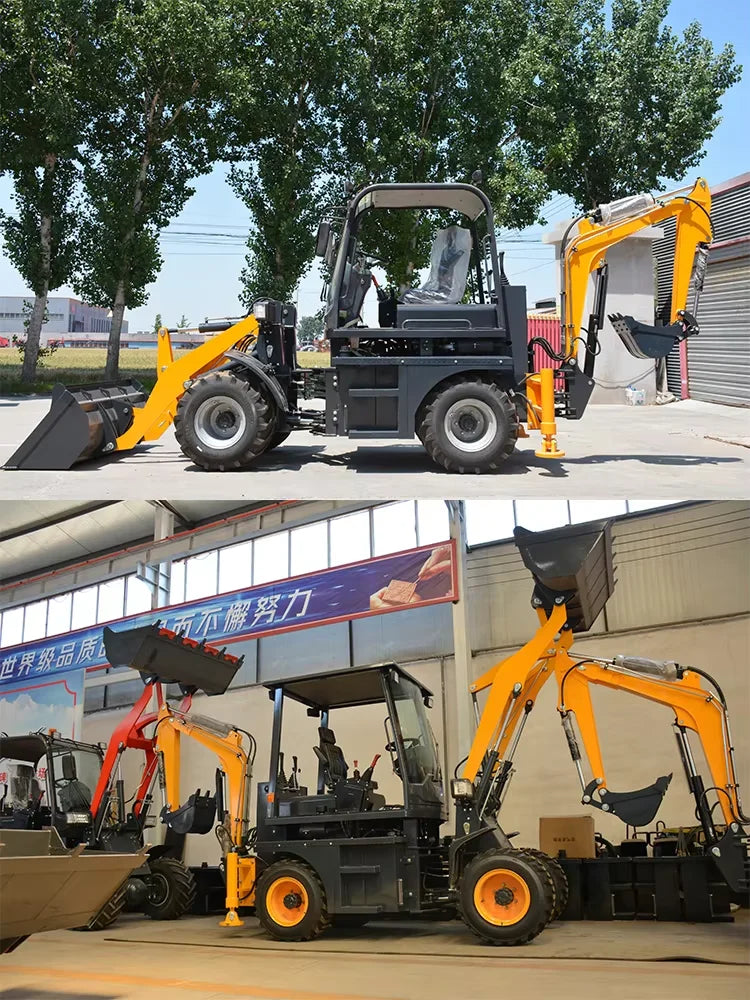

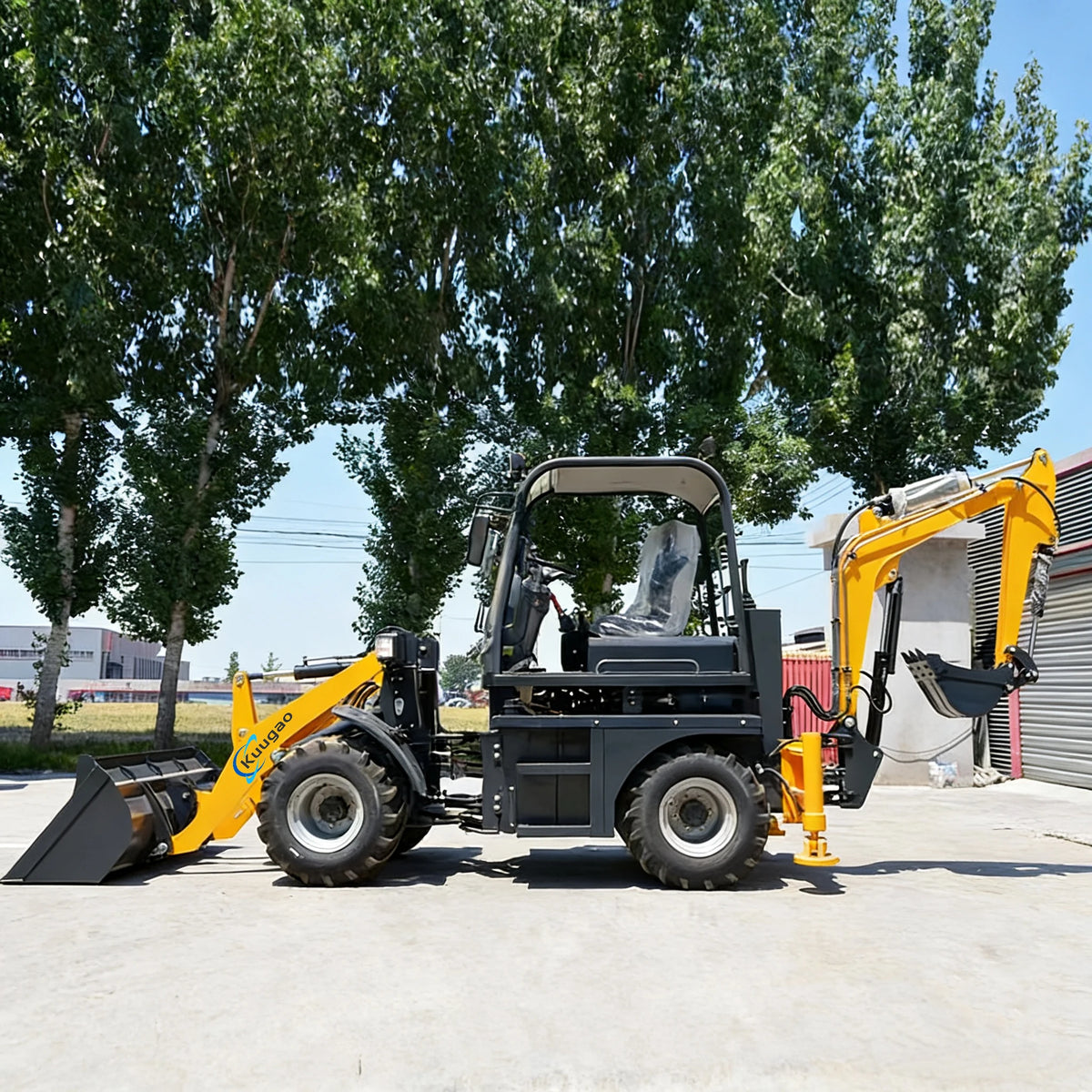

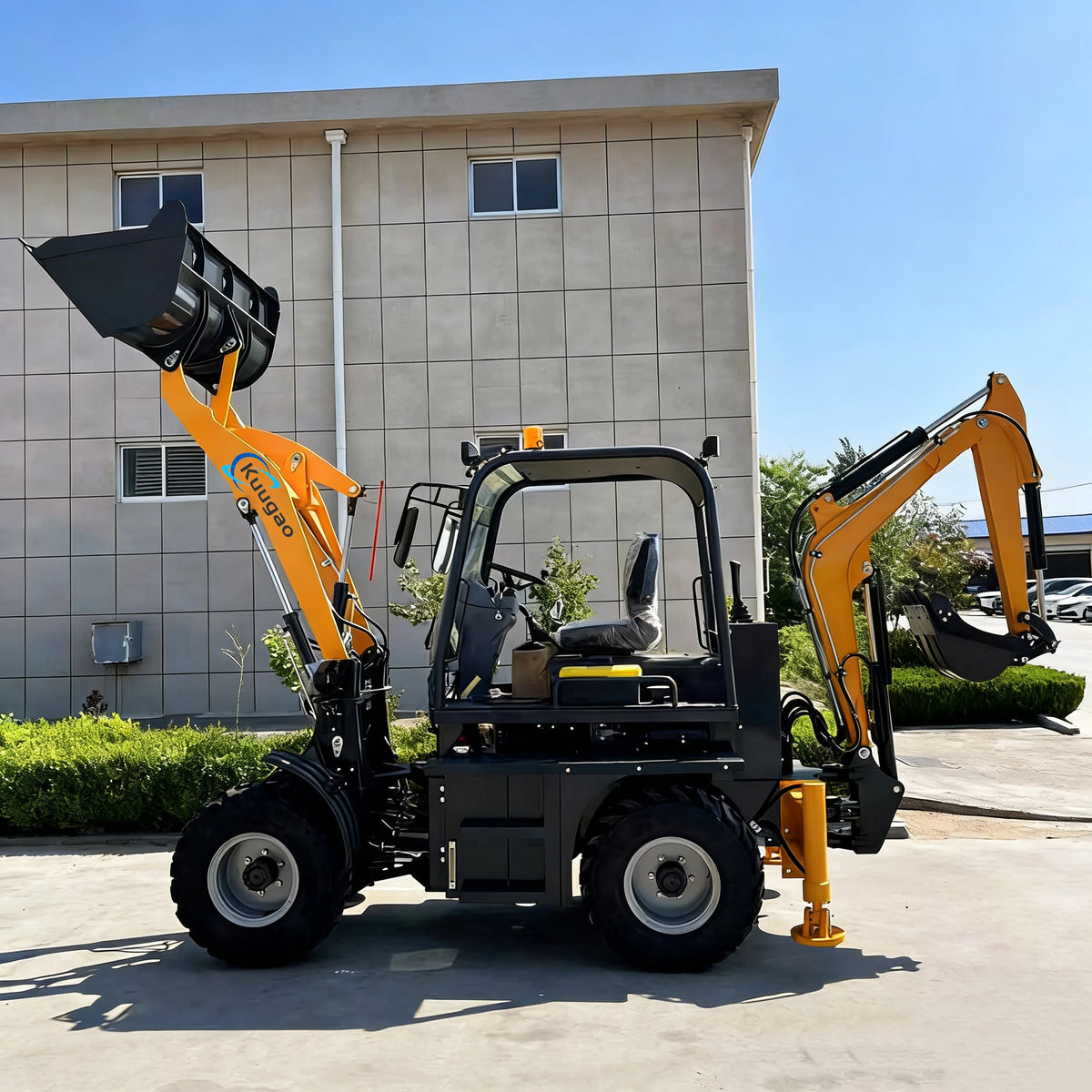

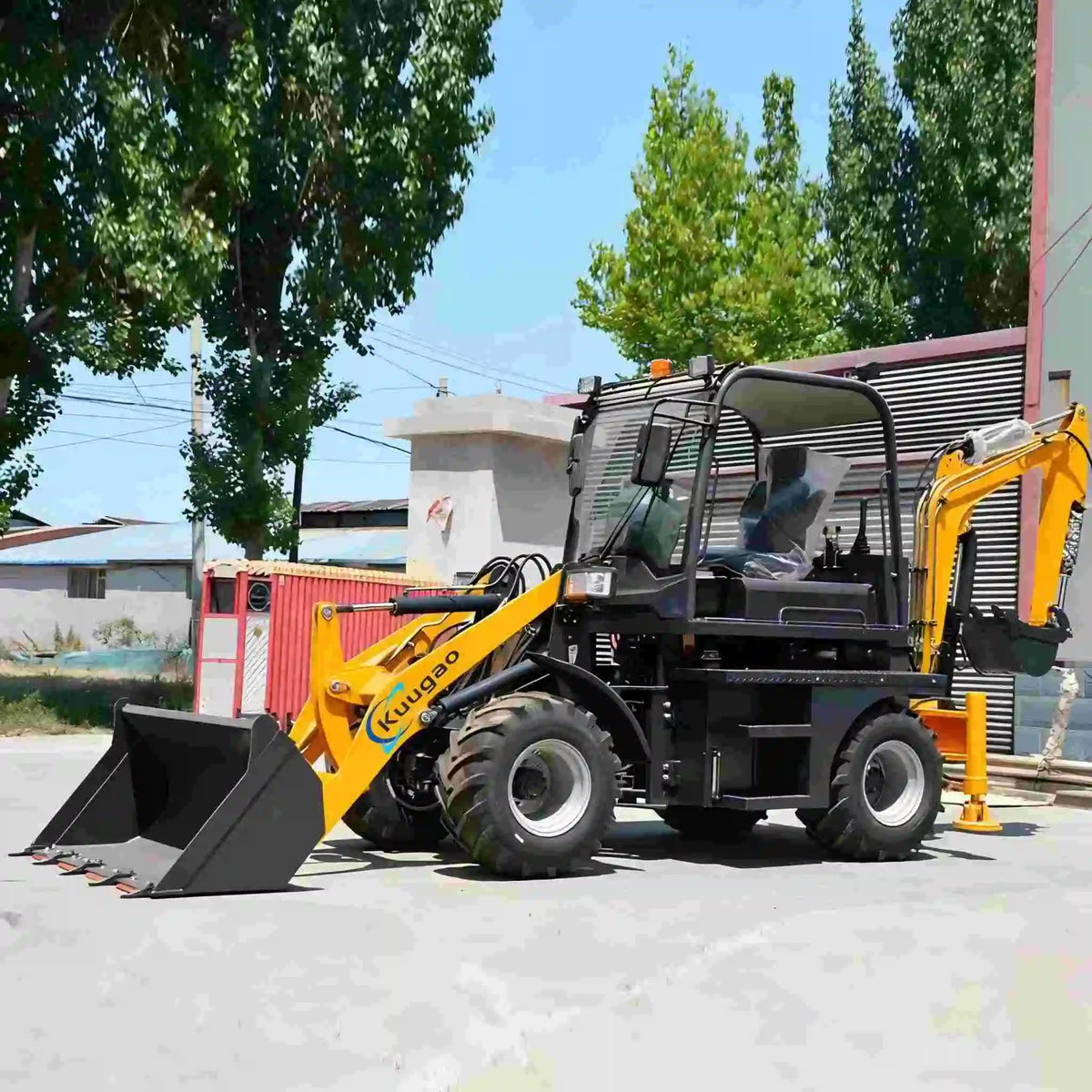

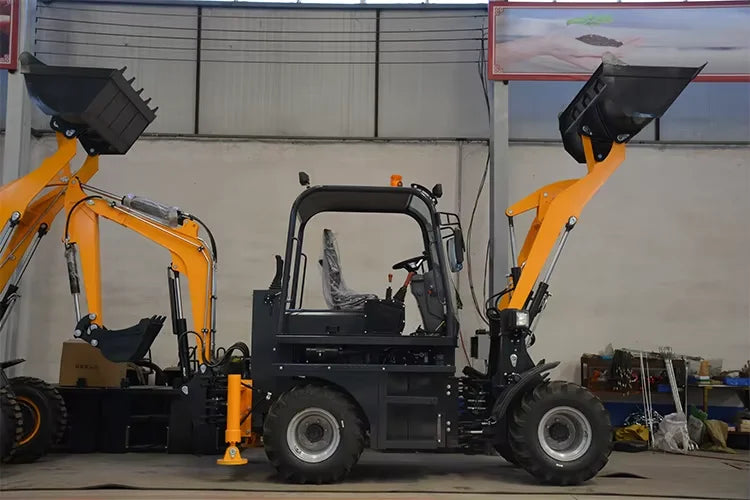

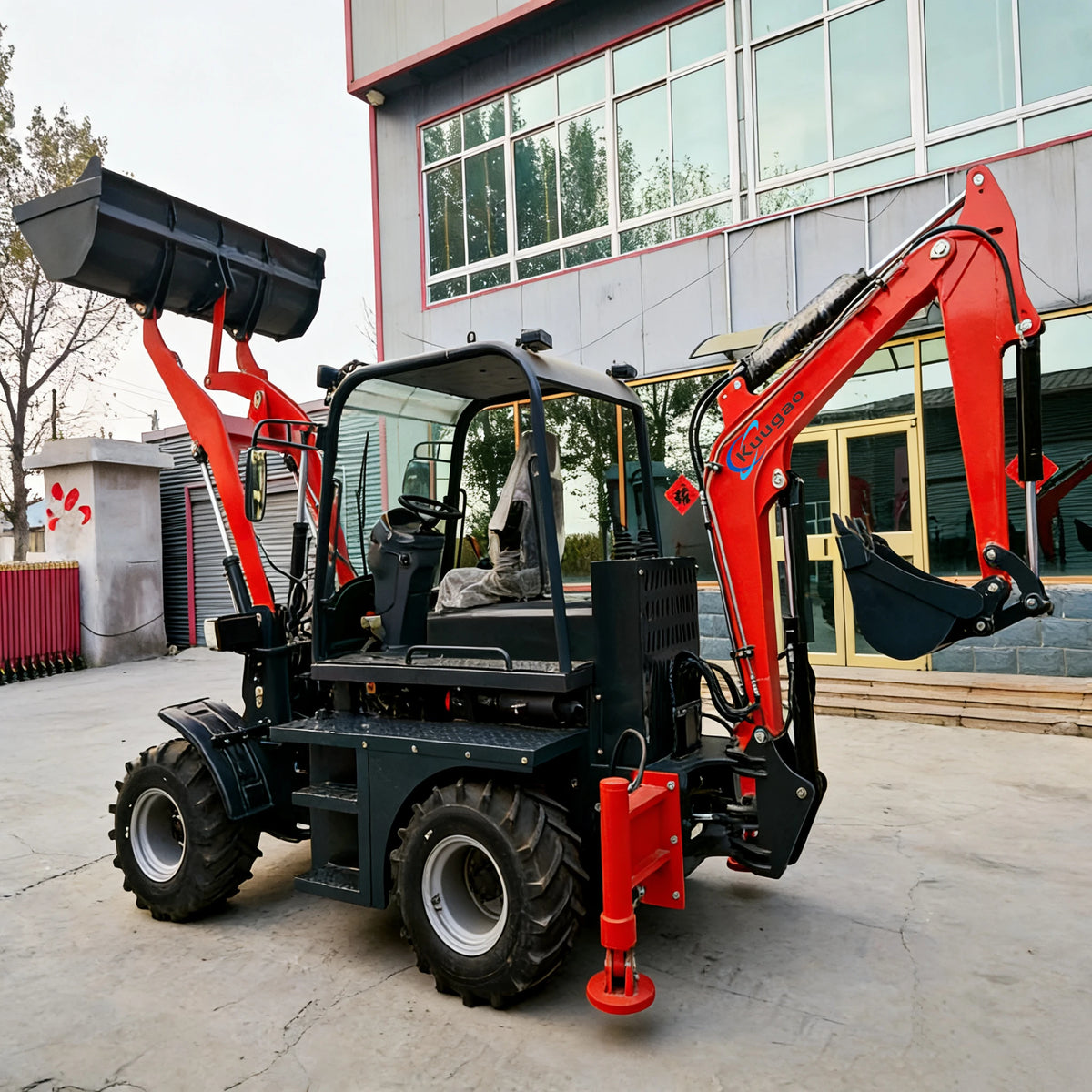

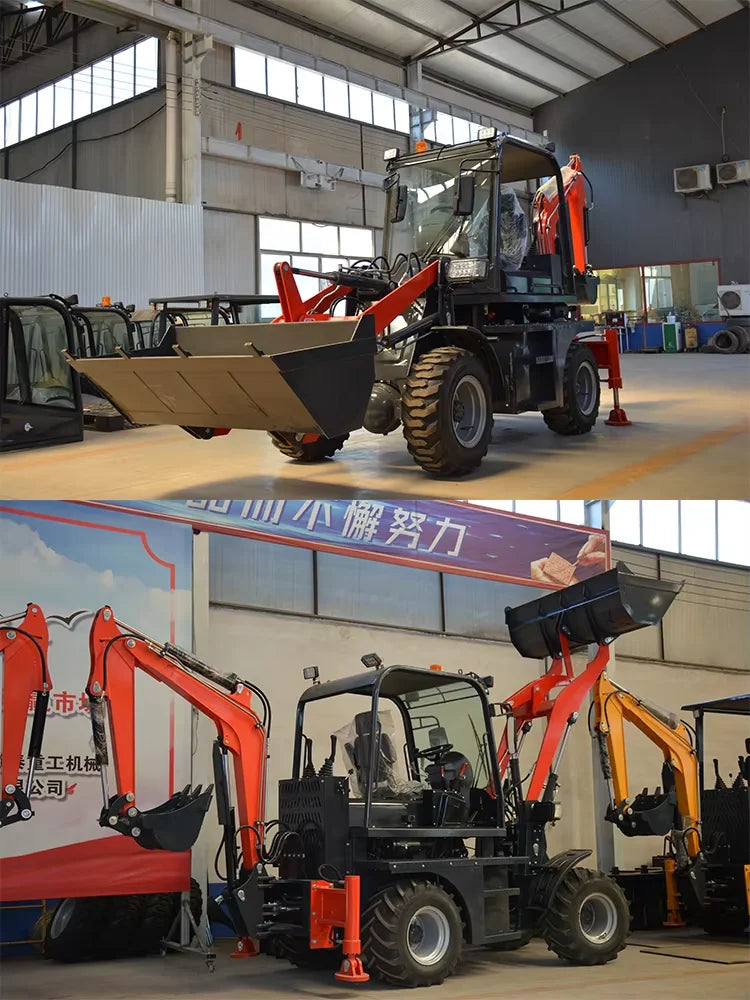

The TBL15-10 backhoe loader is built for operators who need to do more with one machine. A 50HP Yunnei engine powers both the front loader bucket and rear digger arm — CE, EPA, and Euro V certified for compliant operation across global markets. Customizable in color and configuration, this 3.5-ton workhorse handles farms, construction sites, and garden earthmoving with precision and reliability.

Key Benefits

• 50HP Yunnei Engine (37kW) — Inline, water-cooled, 4-stroke, direct-inject diesel built for sustained heavy-duty operation with low total cost of ownership.
• CE / EPA / Euro V Certified — Meets the most stringent international emissions and safety compliance standards for global market access.

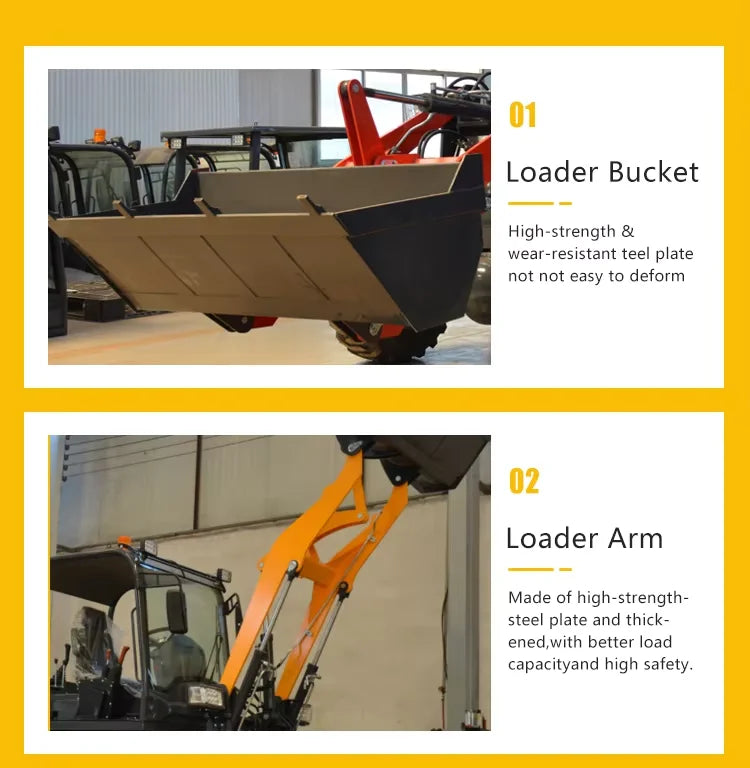

• Front Loader + Rear Digger — 0.5m³ loading bucket capacity and 0.04m³ digging bucket for dual-function earthmoving in a single machine pass.
• Rated Load Capacity: 1,200kg — Handles serious material loads front and back without flinching.
• 2,140mm Max Dig Depth — Deep enough for irrigation trenches, foundation prep, and drainage work on farms and construction sites.
• Top Speed 38km/h — Fast transport between work zones on site without trailer relocation.
• Fully Customizable — Color, logo, and configuration available. 1-piece OEM/ODM orders supported.

How to Use

Operate the front loader bucket for material loading, backfilling, and grading tasks. Switch to the rear backhoe arm for precision digging, trenching, and excavation. Wheeled transport design allows fast repositioning across the job site at up to 38km/h. All controls accessible from the cab with standard joystick and lever operation.

Who It’s For

Built for farm operators managing large-scale land prep and irrigation, construction contractors needing a dual-function machine on tight budgets, landscapers handling significant material movement and excavation, and equipment dealerships or OEM buyers sourcing factory-direct customized units. Suited for both men and women operators in professional heavy equipment roles.

Shop the 3 Ton Backhoe Loader →

Frequently Asked Questions

Q: What engine powers this backhoe loader?
A: Yunnei engine — 50HP rated power, 37kW output. Inline, water-cooled, 4-stroke, direct-inject diesel configuration.

Q: What certifications does it carry?
A: CE, EPA, and Euro V — covering major global emissions and safety compliance requirements.

Q: What is the maximum digging depth?
A: 2,140mm (approximately 7 feet) for the rear backhoe arm. Front loader max dumping height is 2,350mm.

Q: Can I customize the color or configuration?
A: Yes. Color, logo, and machine configuration are all customizable. Single-unit OEM/ODM orders are supported — contact us before ordering.

Q: What is the warranty?
A: 1 year on the machine, 1.5 years on core components. Machinery test report and video inspection provided at dispatch.

SPECIFICATIONS

Model: TBL15-10 | Operating Weight: 3,500kg (7,716 lbs)
Engine: Yunnei | Rated Power: 50HP (37kW)
Engine Pattern: Inline, water-cooled, 4-stroke, direct-inject
Certification: CE / EPA / Euro V
Type: Wheel Tractor Backhoe Loader
Rated Load Capacity: 1,200kg
Loading Bucket Capacity: 0.5m³ | Bucket Width: 1,650mm
Digging Bucket Capacity: 0.04m³
Max Digging Depth: 2,140mm | Max Digging Radius: 3,920mm
Max Dumping Height: 2,350mm | Max Lifting Height: 3,330mm
Dumping Distance: 1,050mm
Backhoe Dimensions: 4,500 × 1,550 × 2,600mm
Max Speed: 22 / 38 km/h | System Pressure: 28MPa
Applicable Industries: Farms, Construction, Garden
Condition: New (2026 Model)
Warranty: 1 Year Machine / 1.5 Years Core Components
Customization: Color, Logo, OEM & ODM Supported
Weight: 7,716.18 lbs (3,500 kg)
Origin: Mainland China
